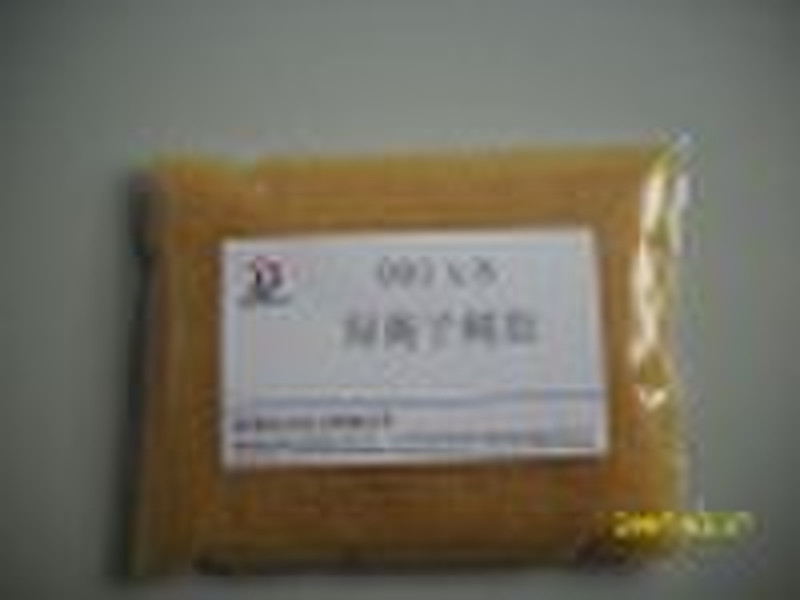

Gel Strong Acid Cation Exchange Resin

Typical physical & Chemical characteristics:Polymer Matrix Structure______________Styrene Crosslinked with DVBPhysical Form and Appearance__________Clear spherical beadsWhole Bead Count___________________95% min.Functional Groups____________________R-SO3¯Ionic Form ,as shipped________________NaTotal Exchange Capacity, Na+ form, wet, volumetric__________________________1.9 eq/l min.Moisture Retention, Na+ form___________43-48%Particle Size Range___________________+1.2 mm <5%, -0.3 mm <1%Swelling Na+→ H+___________________10% max.Ca2+→Na+__________________5% max.Shipping Weight (approx.)_____________810 g/l (52 lb/ft3)Specific Gravity, moist Na+ Form_______1.29PH Range, Stability___________________0 - 14Suggested Operating Condition:Maximum Temperature Na+ Form__________________ H+ Form__________________150°C (300oF) max. 100°C (212oF) max.Minimum Bed Depth_________________0.6m(24inches)Backwash Rate______________________25 to 50% Bed ExpansionRegenerant Concentration Hydrogen Cycle___________ Sodium Cycle_____________6% HCl or 4 to 8% H2SO4 4% to 6% NaClRegenerant Flow Rate ________________4 to 12 BV/h (0.5 to 1.5gpm/cu/ft.)Regenerant Contact Time _____________At least 30 minutesRegenerant Level ____________________112 -300g/L (4 to 10 pounds/ cu/ft.)Displacement Rinse Rate ______________Same as Regenerant Flow RateDisplacement Rinse Volume ___________10 to 15 gallons/cu.ft.Fast Rinse Rate ______________________Same as Service Flow RateFast Rinse Volume ___________________35 to 60 gallons/cu.ft.Service Flow Rate ___________________10-25m/h (2 to 10 gpm/cu/ft.)Hydraulic Properties:A. Pressure Drop: The graph above shows the expected pressure loss per foot of bed depth as a function of flow rate, at various temperatures. B. Backwash : After each cycle the resin bed should be backwashed at a rate that expands the bed 25 to 50 percent. This will remove any foreign matter and reclassify the bed. The graph below shows the expansion characteristics of 001x8 in the sodium form.
